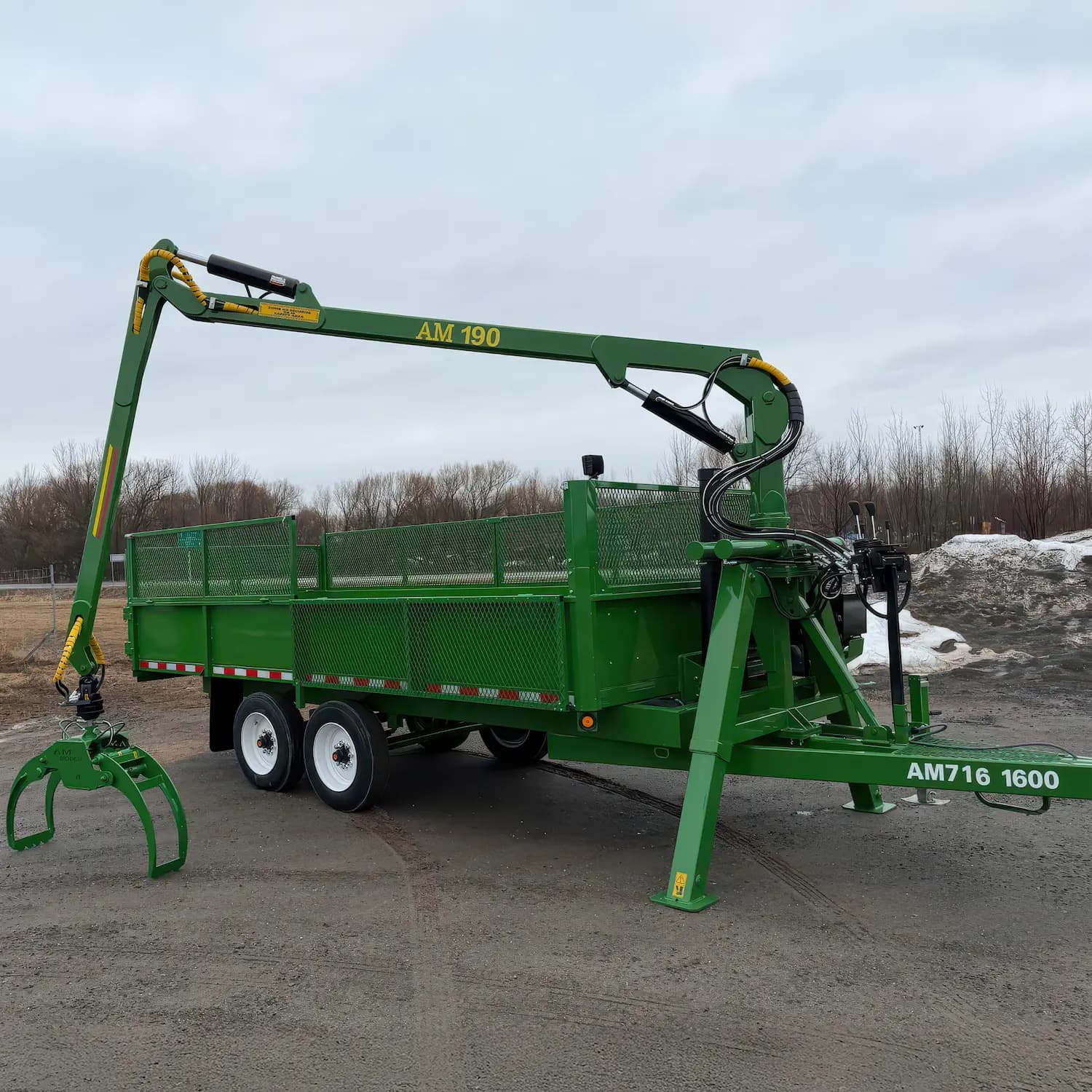

In stockAM 716 1600
7′ × 16′ dump box, 16,000 lb GVWR and a hot-dip galvanized frame. Equipment ramps let it haul a compact tractor or ATV too.
$47,650New 2026 · In stock · See stock unit #080
AM 716 1600 details AM Machinery at Bailey’s
Grapple Trailers for Sale: AM Machinery Grapple Dump Trailers
Self-load logs with a 19′ grapple loader, then dump the load. One operator, one rig.
AM 716 1600 $47,650AM 820 2000 $59,995
- 19′ loader · 13 HP Honda
- $0 down financing options*
19′Loader reach
360°Boom rotation
2,750 lbLift at mid-boom
13 HPHonda, electric start
AM 716 1600 vs AM 820 2000
Two grapple dump trailers.
Pick by the load.
Both carry the AM 190 grapple loader: 19′ reach, 360° rotation and a 48 inch grapple, run by a 13 HP Honda. The AM 820 2000 adds a bigger 8′ × 20′ dump box and a 20,000 lb GVWR.
In stock

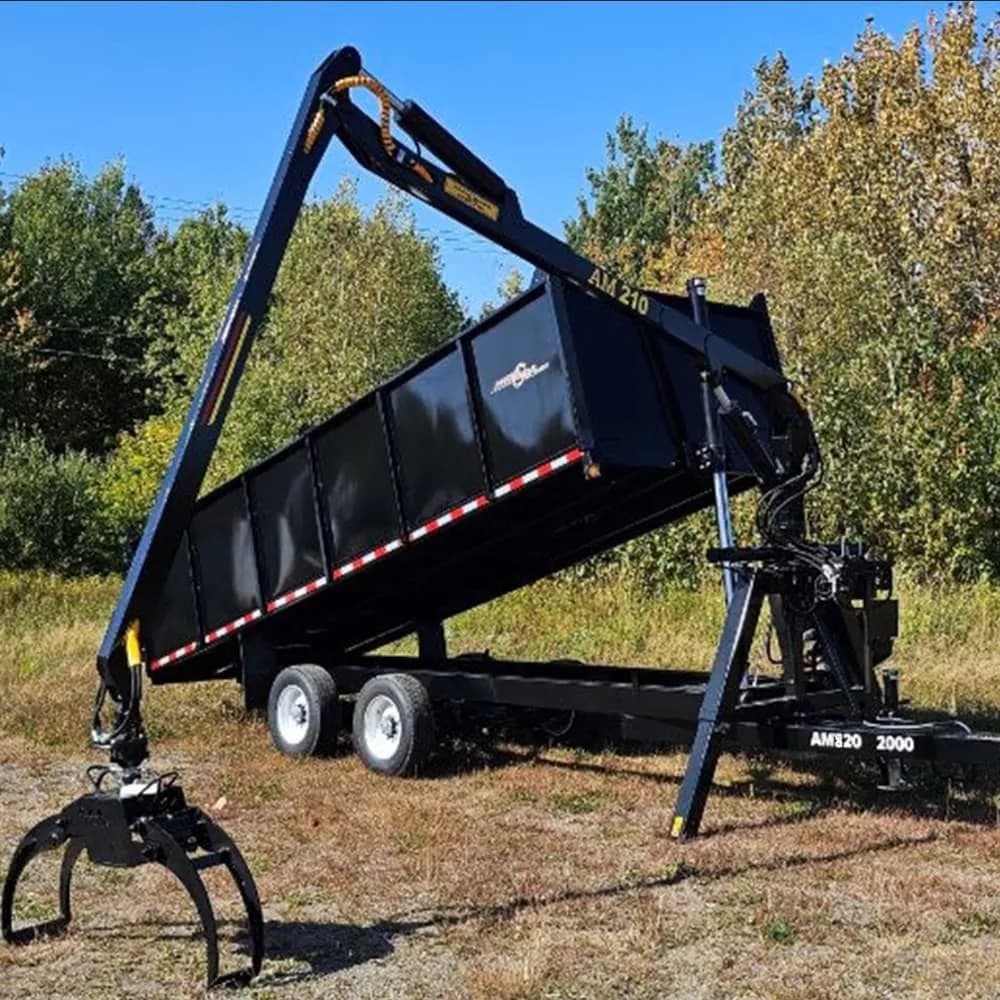

In stockAM 820 2000
8′ × 20′ dump box on 2 × 10,000 lb axles, 20,000 lb GVWR. The same 19′ loader for bigger loads.
$59,995New 2026 · In stock · See stock unit #081
AM 820 2000 details | Feature | AM 716 1600 | AM 820 2000 |
|---|---|---|
| Grapple loader | AM 190, 19′ reach | AM 190, 19′ reach |
| Rotation | 360° boom · continuous grapple | 360° boom · continuous grapple |
| Loader capacity | 2,750 lb at mid-boom · 1,400 lb at full reach | 2,750 lb at mid-boom · 1,400 lb at full reach |
| Grapple opening | 48 inch | 48 inch |
| GVWR | 16,000 lb | 20,000 lb |
| Load capacity | About 8,000 lb | About 11,000 lb |
| Dump box | 7′ × 16′, 4′ solid steel sides | 8′ × 20′, 4′ solid steel sides |
| Axles and tires | 2 × 8,000 lb axles, 17.5 inch tires | 2 × 10,000 lb axles, dual 16 inch tires |
| Hydraulic power | 13 HP Honda, electric start | 13 HP Honda, electric start |
| Hook-up | Gooseneck, ball hitch or pintle | Gooseneck, ball hitch or pintle |
| Price | $47,650 | $59,995 |
Loader figures are manufacturer specifications. Box lengths, side heights and axle ratings can be specified to order; ask us.
Not sure which size fits?
Tell us what you haul and what you tow with. We’ll match the trailer in one call.
Why a grapple trailer
Load it, haul it, dump it.
No second machine to load
The grapple picks up logs, rounds and brush, so one person loads the trailer without a tractor or skid steer.
Dump instead of unload
The hydraulic dump box tips firewood, brush, soil, gravel or chips where you need them.
Its own power
A 13 HP Honda electric-start engine runs the loader hydraulics on the trailer.
What it’s for
Built for wood, brush and bulk material.
Firewood
Self-load rounds and dump them straight at the processor or the pile.
Tree-service cleanup
Load trunk wood and brush with the grapple, then dump the load in one stop.
Logging
A 19′ loader and up to 20,000 lb GVWR for production work.
Bulk material
The dump box tips soil, gravel, wood chips, brush and stumps.
No dump box needed?
Log trailers with a grapple.
AM Machinery RFR road log trailers carry a grapple loader and a 13 HP Honda on a stake deck, with electric brakes and DOT road lights. Hook-up options are gooseneck, ball hitch or pintle.
5 ton road log trailer
RFR05HD
- JMS 155 loader, 15′6″ reach
- 13,500 lb GVWR
- 84″ × 15′6″ load area
$34,000In stock · See unit #077
RFR05HD details7 ton road log trailer
RFR07HD
- AM 190 loader, 19′ reach
- 16,000 lb GVWR
- 84″ × 20′ load area
$37,500In stock · See unit #078
RFR07HD details10 ton road log trailer
RFR10HD
- AM 190 loader, 19′ reach
- 20,000 lb GVWR
- 84″ × 20′ load area
$39,995In stock · See unit #079

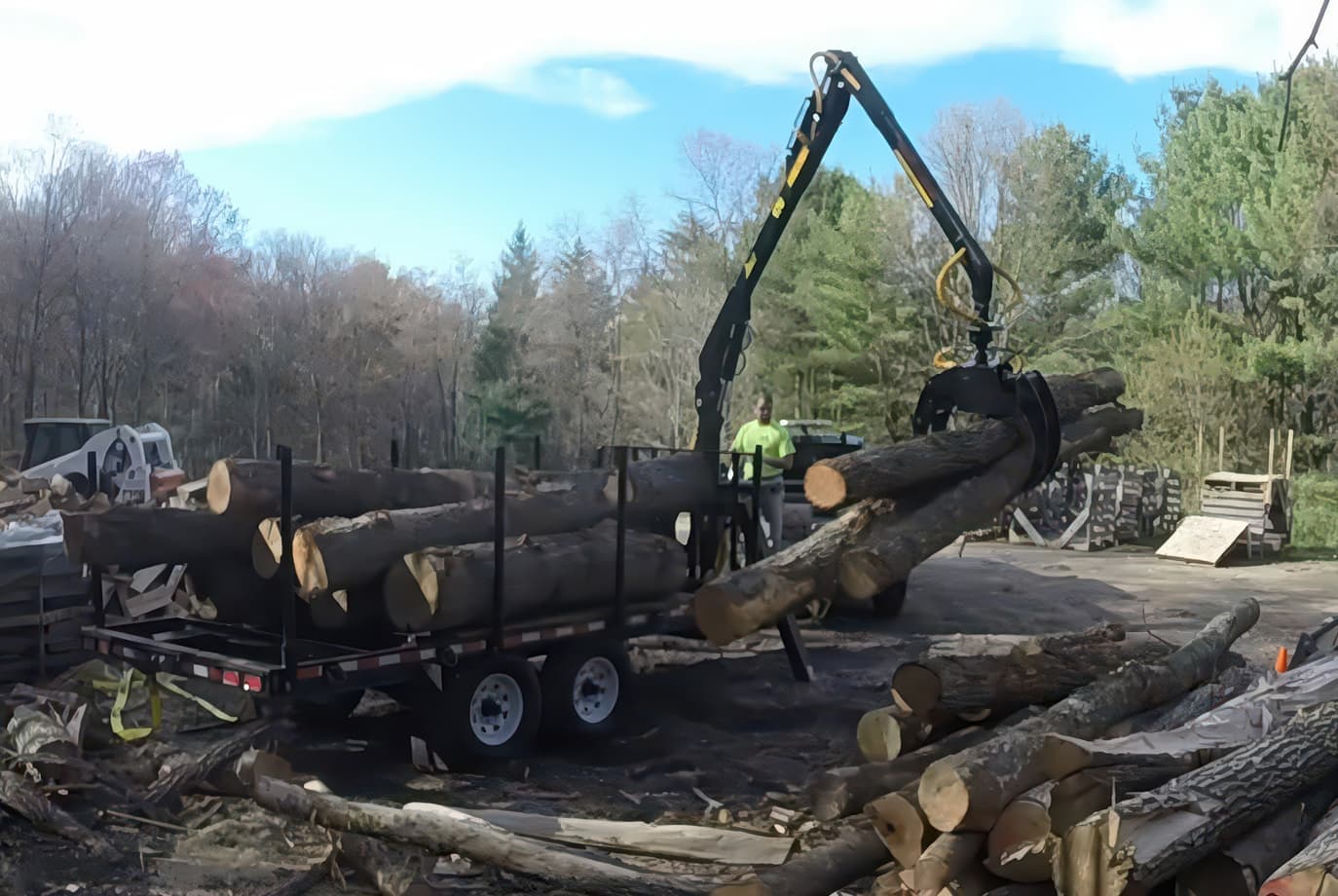

RFR10HD detailsSee it work
AM Machinery trailers and grapple loaders in the field.
Financing
$0 down financing options.
Ask about $0 down, up to 90 days deferred payments and extended terms on an AM Machinery grapple trailer.*
Buying for your business? Equipment you buy or finance for business use can qualify for the Section 179 deduction; your tax professional makes the election. How Section 179 works
*Financing is provided by a third-party lender and is subject to credit approval. Advertised options may vary; availability, rates, down payment and final terms depend on lender approval. Ask for a complete equipment and delivery quote.
Before you buy
Grapple trailer questions.
What is a grapple trailer?
A trailer with its own hydraulic grapple loader, so one person can pick up logs, rounds or brush and load them without a second machine. The AM 716 1600 and AM 820 2000 add a hydraulic dump box, so the same rig also dumps the load.
How much does a grapple dump trailer cost?
Our in-stock units are listed at $47650.00 for the AM 716 1600 and $59995.00 for the AM 820 2000. Call (707) 600-6696 for a complete quote including freight, taxes and options.
AM 716 1600 or AM 820 2000: which do I need?
Both carry the same AM 190 loader with a 19′ reach and a 13 HP Honda power unit. The AM 716 1600 has a 7′ × 16′ dump box and a 16,000 lb GVWR. The AM 820 2000 steps up to an 8′ × 20′ box and a 20,000 lb GVWR for bigger loads.
What powers the grapple loader?
A 13 HP Honda electric-start engine drives the hydraulic unit (6 GPM at 3,000 PSI).
What hitch does it use?
Hook-up options are gooseneck, ball hitch or pintle. Tell us what you tow with and we’ll spec the trailer to match.
Do you have a log trailer with a grapple but no dump box?
Yes. The AM Machinery RFR road log trailers carry a grapple loader on a stake deck. The RFR05HD, RFR07HD and RFR10HD are shown in the road log trailer section above, with current pricing.
Can you ship a grapple trailer to me?
Ask us. Freight is quoted per customer, so request a complete delivered price for your location.
Is financing available?
Yes. Financing is available through Bailey’s third-party lending partner, subject to credit approval. Ask about $0 down options, up to 90 days with no payments, and extended terms. Your final rate, down payment and terms depend on approval.
