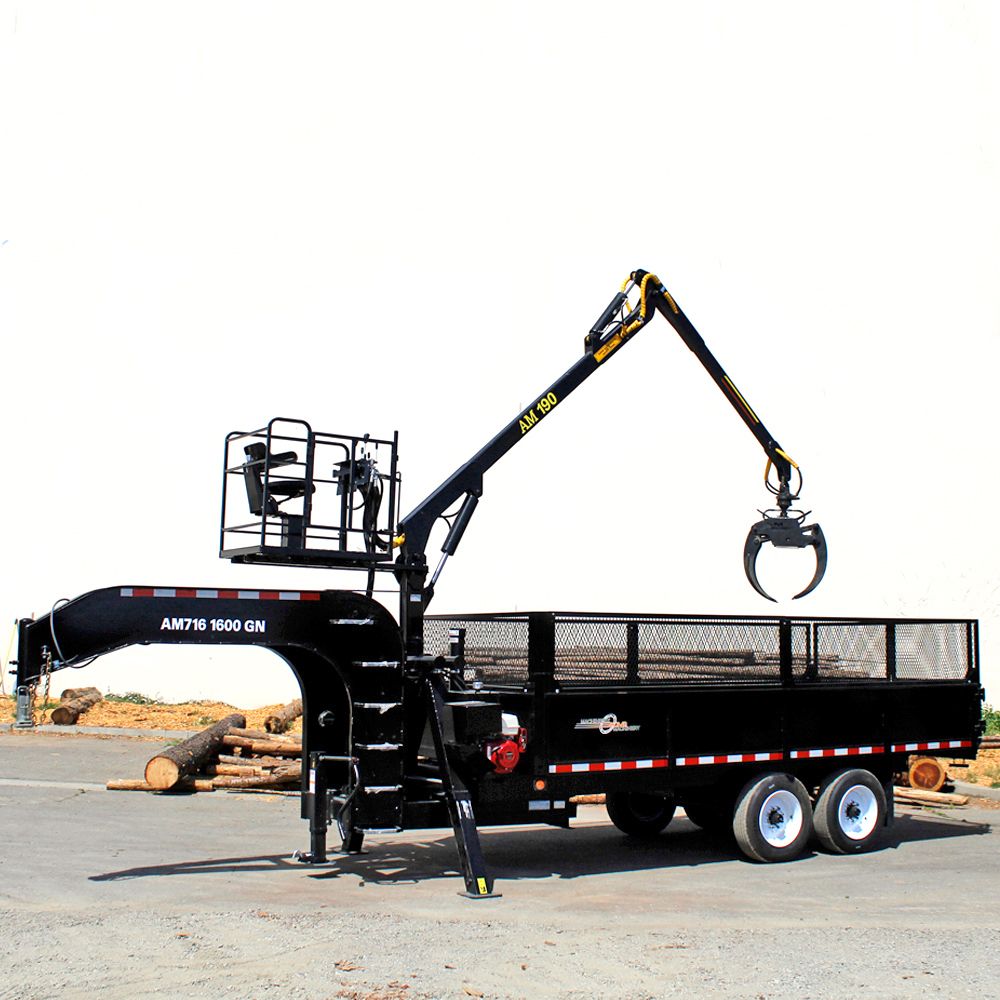

WoodlandPRO Hydraulic Dump Trailer with 19' Grapple Loader (AM 716 1600)
One complete rig that self-loads logs and dumps bulk material. A galvanized 7'×16' deck-over dump trailer with an integrated AM-190 19' grapple loader and 13 HP Honda power unit.
- 19' Reach
- 360° Continuous Rotation
- 16,000 lb GVWR
- 7'×16' Deck-Over Dump
- Galvanized Frame
- 13 HP Honda
Since 1982 · Financing available
Self-Loads Logs and Dumps Bulk Material
The AM 716 1600 does the work of two machines. The integrated AM-190 loader picks and loads logs, and the galvanized 7′×16′ deck-over bed dumps firewood, brush, soil, gravel, or chips. One operator, one rig, one trip.

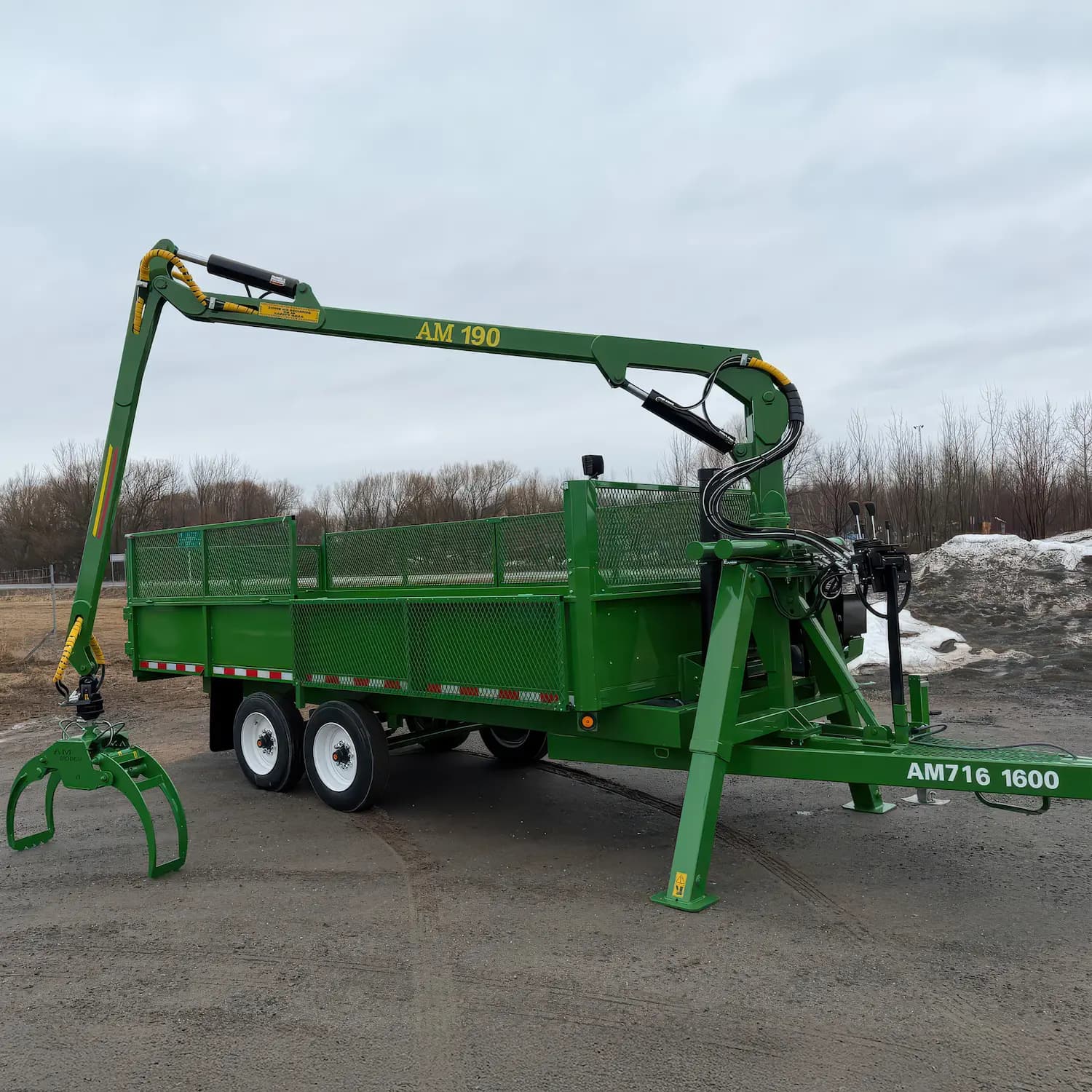

The AM-190 19' Grapple Loader
- Reach (boom length)
- 19' / 5.79 m
- Boom / mast rotation
- 360°
- Grapple rotation
- Continuous
- Hydraulic flow
- 6 GPM
- Working pressure
- 3,000 PSI
- Max grapple opening
- 48" / 122 cm
- Rack & pinion
- Double
- Max capacity at mid-boom
- 2,750 lbs / 1,247 kg
- Capacity at full reach
- 1,400 lbs / 635 kg
- Stabilizers
- Telescopic
- Loader weight
- ~2,172 lbs / 985 kg
Factory figures shown. Older dealer tables list 3,000 lbs at mid-boom and 2,100 lbs at full reach.
AM 716 1600 Specifications
- GVWR
- 16,000 lbs
- Axles
- Tandem 8,000 lb Dexter
- Wheels / tires
- 17.5", Load Range J, 18-ply
- Deck
- 7' × 16' deck-over dump
- Frame
- Hot-dip galvanized
- Hydraulic power unit
- 13 HP Honda, electric start
- Hitch
- Pintle
- Included
- 2 MSCH sides (add'l fee) + equipment ramps
- Shipping weight
- 6,200 lbs
GVWR, axle, and tire figures are confirmed from a dealer walk-around; contact us to confirm the exact spec on your configuration.
Built For
High-volume firewood
Self-load rounds and dump straight into the processor or pile.
Tree-service cleanup
Load trunk wood and brush, then dump the load in one stop.
Professional logging
A 19' loader and 16,000 lb GVWR for production work.
Bulk material
Dump soil, gravel, wood chips, brush, and stumps.
Equipment hauling
Load a compact tractor or ATV via the equipment ramps.
See AM Machinery In Action
Watch AM Machinery’s forestry trailers and hydraulic grapple loaders at work in the field — the same lineup we stock and support at Bailey’s.
Self-Loading Dump Trailer Buying Guide
Why self-loading + dump
A self-loading dump trailer does the work of two machines: the AM-190 loader picks and loads logs, and the deck-over dump tips bulk material out fast. One operator, one rig, one trip.
Galvanized vs. painted
The AM 716 1600 frame is hot-dip galvanized, not painted. Galvanizing resists rust from the inside out, so the trailer holds up to mud, bark acids, and year-round outdoor storage far better than a painted frame.
Options & configurations
Available with high or mesh sides, equipment ramps, a tarp, color choices, gooseneck conversion, a non-dumping configuration, and GVWR upgrades. Tell us your work and we’ll spec it.
Sibling models
Need a different size? AM road dump trailers run from the AM 610-1000 up to the heavy-duty AM 616-2000, and the AM 820 2000 is a 10-ton 8'×20' unit with the same 19' loader and 13 HP Honda.
Compare AM Machinery Dump Trailers
| Model | Capacity | Deck / Notes |
|---|---|---|
| AM 610-1000 | 8,075 lbs | 100 cu ft · 60"×120" |
| AM 612-1200 | 9,650 lbs | 120 cu ft · 72"×142" |
| AM 614-1400 | 11,350 lbs | 140 cu ft · 72"×168" |
| AM 716 1600Viewing | 16,000 lb GVWR | 7'×16' deck-over · 19' loader |
| AM 616-2000 | 16,600 lbs | 160 cu ft · 3 axles · heavy duty |
| AM 820 2000 | 10 Ton | 8'×20' deck-over · 19' loader |
